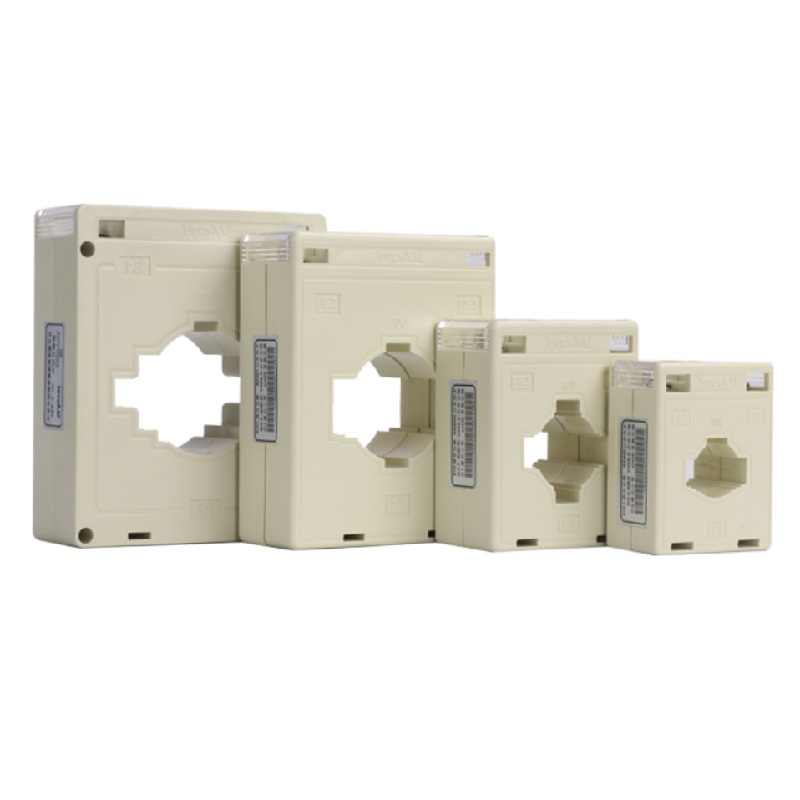

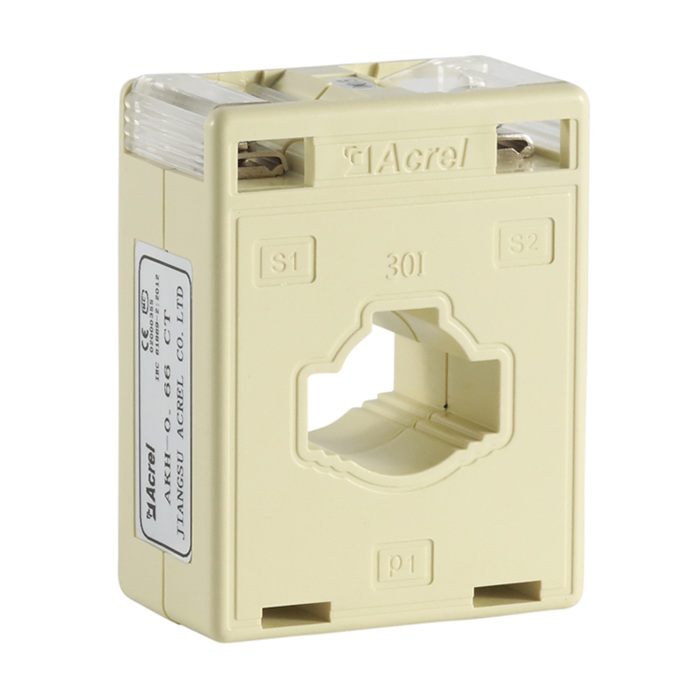

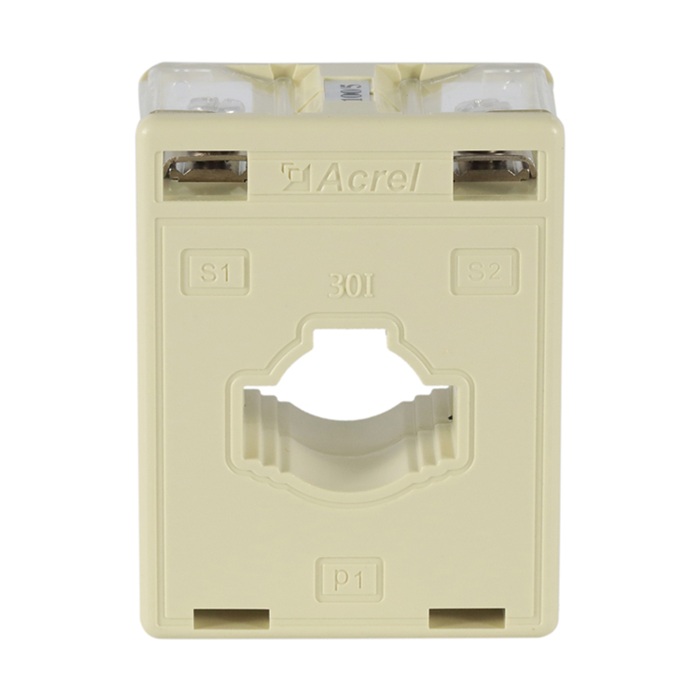

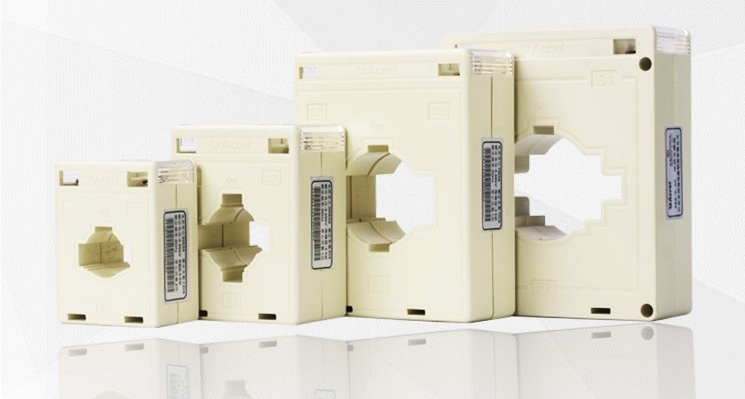

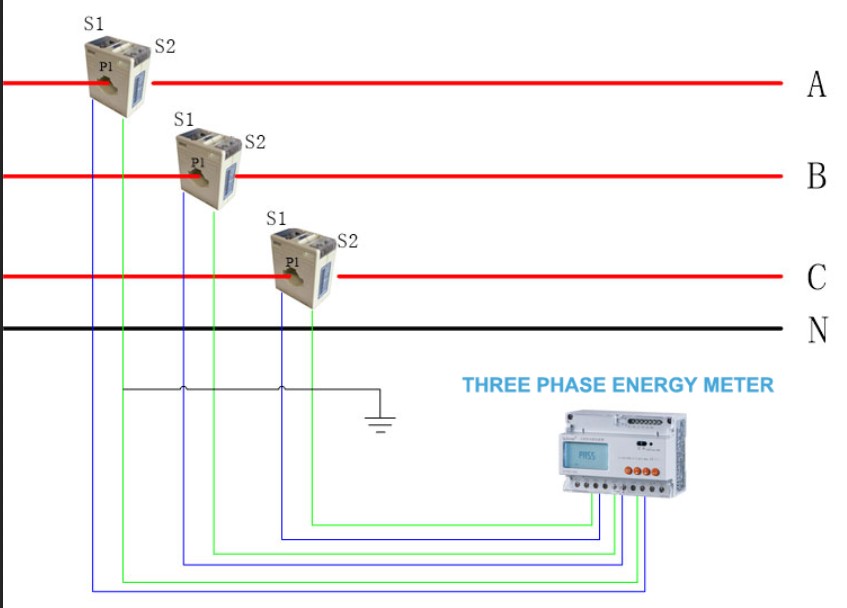

Acrel AKH-0.66/I Series Current Transformer can be used together with measuring instruments by collecting AC current signals.
The measuring range of primary current is 15-3000A, and the secondary output is 5A or 1A. The measuring range is 5-120% of the rated value. Clamshell design, beautiful appearance, convenient wiring.
The cover material is transparent polycarbonate, which can clearly see the secondary lead wiring. Square and square combination of holes, both through the cable, or through the busbar.
| Type | Outline size | Through size | Mounting size | Tolerance | |||||
| (mm) | |||||||||
| W | H | D | a | e | φ | M | N | ||
| 30 I | 60 | 78 | 36 | 31 | 11 | 22 | 34 | 57.5 | ±1 |
| 40 I | 75 | 95 | 45 | 40 | 11 | 31 | 40 | 57.5 | |
| 60 I | 102 | 130 | 45 | 61.5 | 21 | 45 | 42 | 57.5 | |
| 80 I | 118 | 140 | 45 | 82 | 11 | 52 | 60 | 57.5 | |

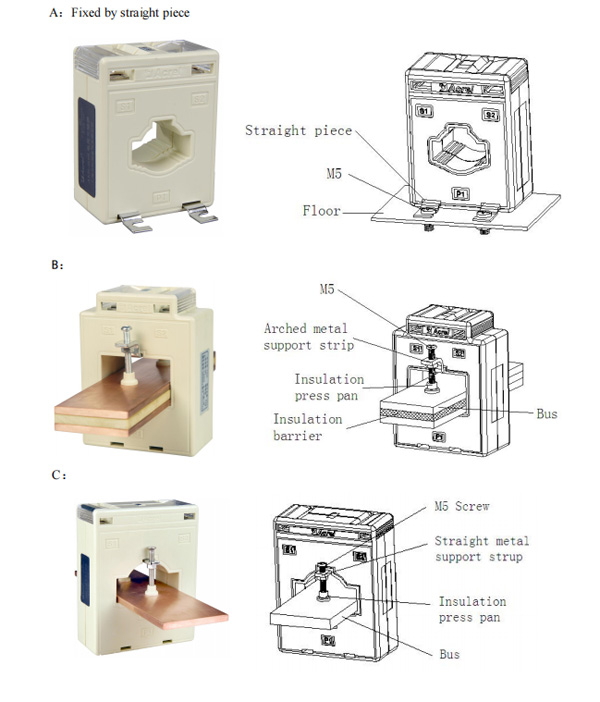

| Shape | Specification | Rated current ratio (A) | Precision degree and corresponding rated load(VA) | Straight- through tums | Bus spec(mm)/number | Max cable outer diameter (mm) | Installation | ||
| 0.2 | 0.5 | 1 | |||||||
 | 30I | 15/5(1) | 1.5 | 5 | / | Ф22 | A | ||
| 20/5(1) | 1.5 | 4 | |||||||
| 25-30/5(1) | 1.5 | 3 | |||||||
| 40-60/5(1) | 1.5 | 2 | |||||||
| 75-100/5(1) | 1.5 | 1 | 30×10/1 | A、B | |||||
| 150-200/5(1) | 2.5 | 1 | |||||||
| 250/5(1) | 3.75 | 1 | |||||||
| 300-450/5(1) | 5 | 1 | |||||||
| 500/5(1) | 10 | 1 | |||||||
| 600/5 | 10 | 1 | |||||||
 | 40I | 10/5(1) | 1.5 | 10 | / | Ф30 | A | ||
| 15/5(1) | 1.5 | 8 | |||||||
| 20/5(1) | 1.5 | 5 | |||||||
| 25-30/5(1) | 1.5 | 4 | |||||||
| 40/5(1) | 1.5 | 3 | |||||||
| 50-75/5(1) | 1.5 | 2 | |||||||
| 100/5(1) | 1.5 | 1 | 40×10/1 | A、C | |||||
| 150/5(1) | 2.5 | 1 | |||||||
| 200/5(1) | 2.5 | 1 | |||||||
| 250/5(1) | 3.75 | 1 | |||||||
| 300-450/5(1) | 5 | 1 | |||||||
| 500-800/5(1) | 10 | 1 | |||||||
| 1000/5(1) | 10 | 1 | |||||||
 | 60I | 150/5(1) | 2.5 | 1 | 60×10/1 | Ф44 | A、C | ||
| 200-250/5(1) | 2.5 | 1 | |||||||
| 300-450/5(1) | 5 | 1 | |||||||
| 500-800/5(1) | 10 | 1 | |||||||
| 1000-1250/5(1) | 10 | 1 | |||||||
| 1500-2000/5(1) | 20 | 1 | |||||||
| 2500/5(1) | 30 | 1 | 60×6/1-2 | ||||||
 | 80I | 150/5(1) | 2.5 | 1 | 80×10/1 | Ф50 | A、C | ||
| 200-250/5(1) | 2.5 | 1 | |||||||
| 300-400/5(1) | 5 | 1 | |||||||
| 500-800/5(1) | 10 | 1 | |||||||
| 1000-1250/5(1) | 10 | 1 | |||||||
| 1500-2000/5(1) | 20 | 1 | |||||||
| 2500-3000/5(1) | 30 | 1 | |||||||
