ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
| ACREL model | ARTM-Pn |

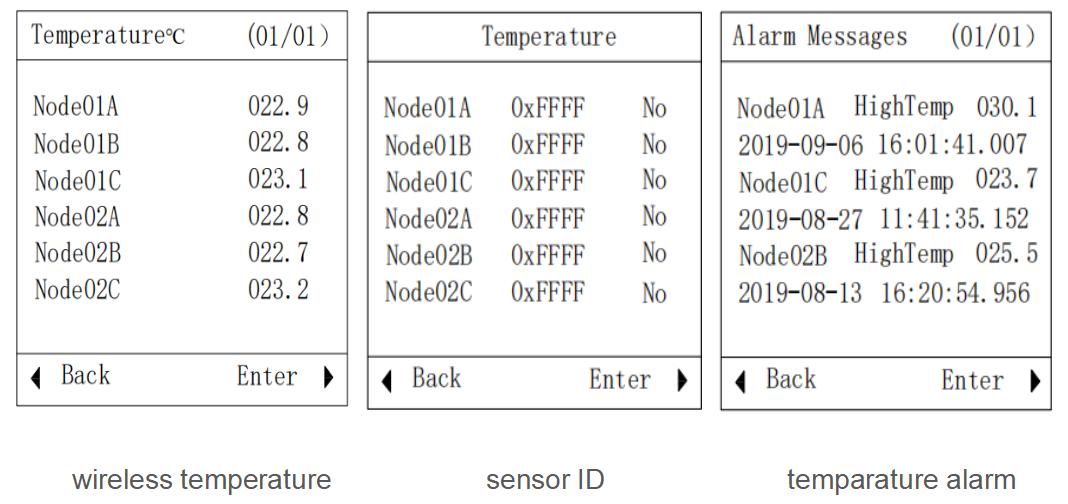

| Receive&Display Temperature Data | From up to 60 ATE Temperature Sensors |
| Communication Methods | GFSK (with ATE Temperature Sensor) |
| Communication Distance | 150m in open Area & 15m in Building |

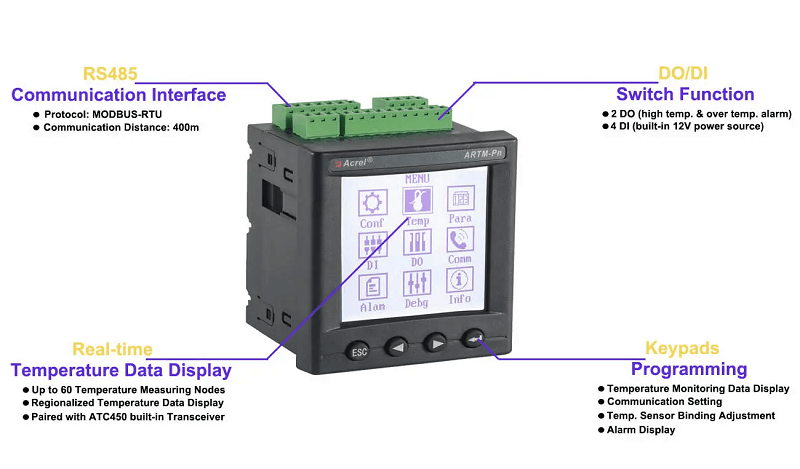

| Extra RS485 Communication | MODBUS-RTU |

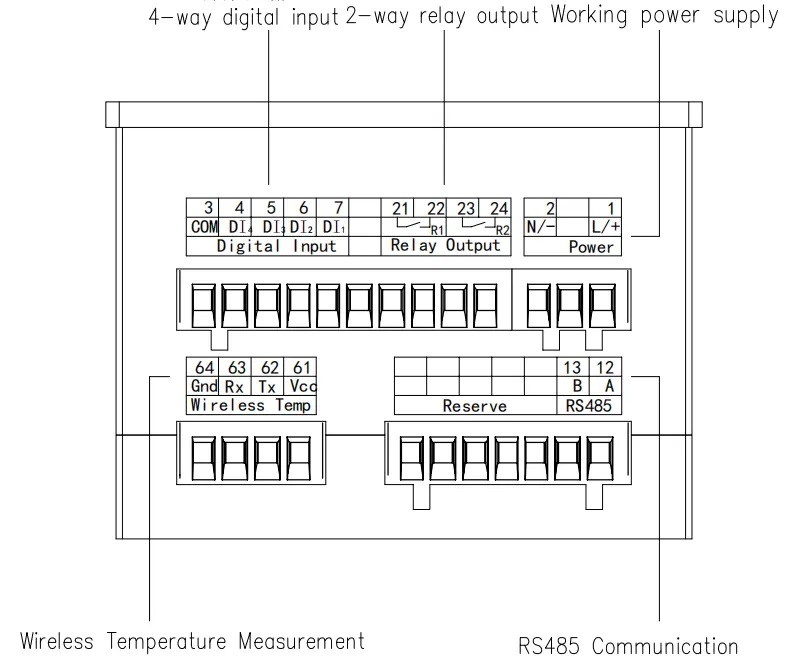

| DO/DI Function | 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs |
| Dimension | 96*82*96mm (L*W*H) |

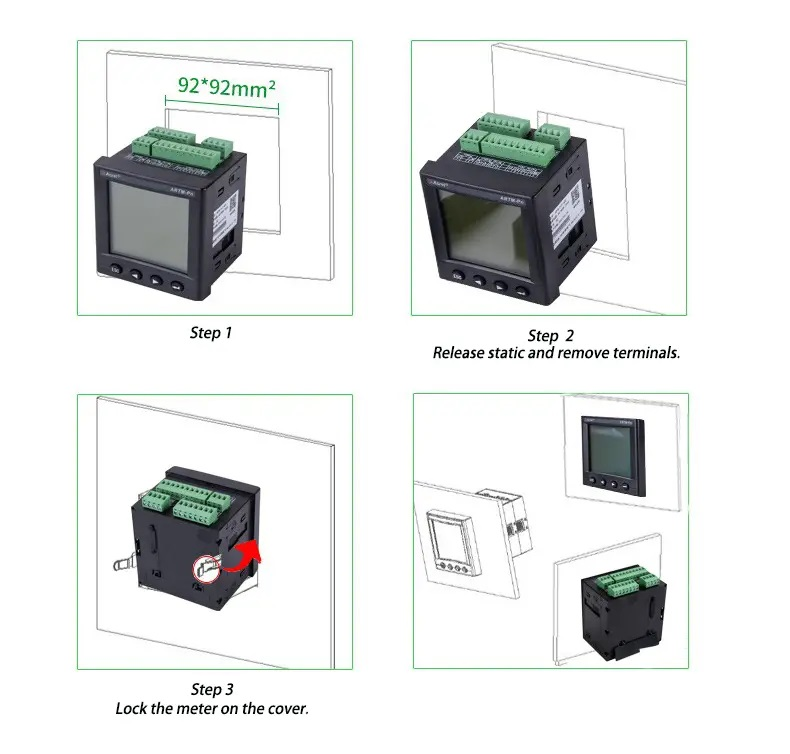

| Installation | Panel Mounted (Cut-out Dimension--92*92mm) |
| Electric Parameter Meausurement | U,I,P,Q,F,kWh,kVarh (Optional) |
