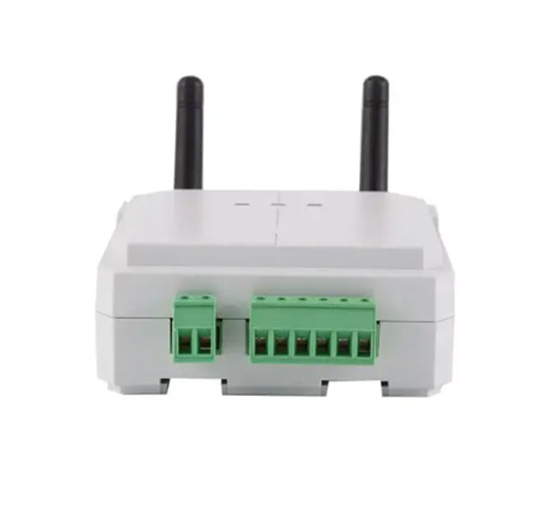

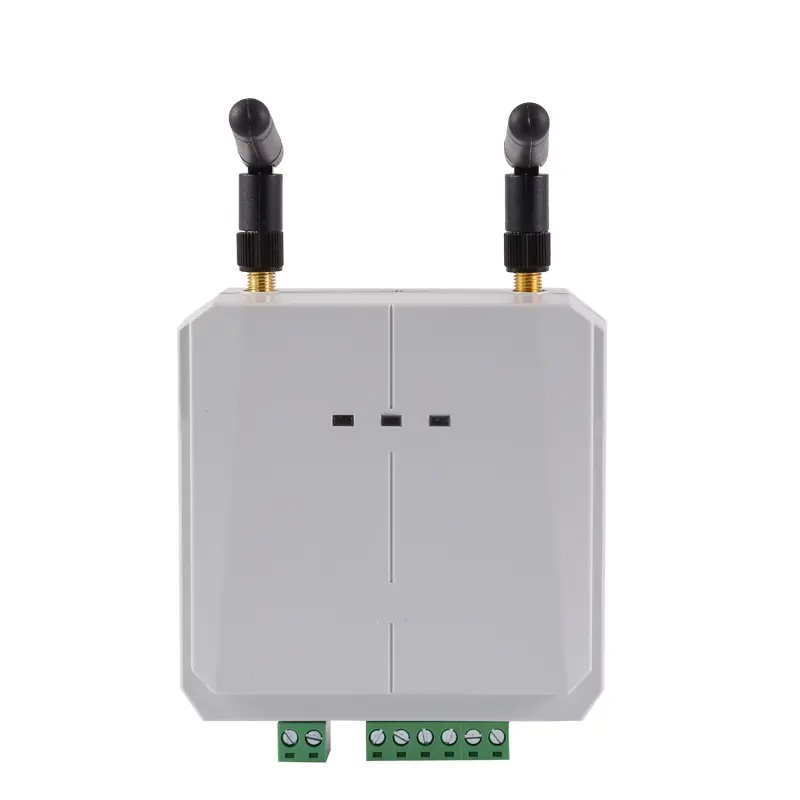

ATC600 Wireless Temperature Transceiver

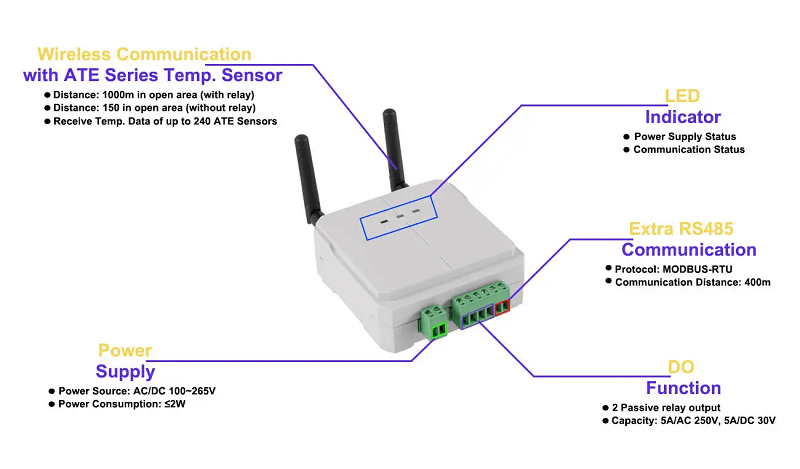

Measuring 240 points(ATE100M/ATE200/ATE400/ATE200P/ACE100/AHE100);
Power supply：DC12~48V/ AC/DC 85~265V
Wireless distance, Receiver sensor 150m (in open area)，Relay distance 1Km (in open area);
1 RS485 serial communication, Modbus-RTU
2 alarm relays

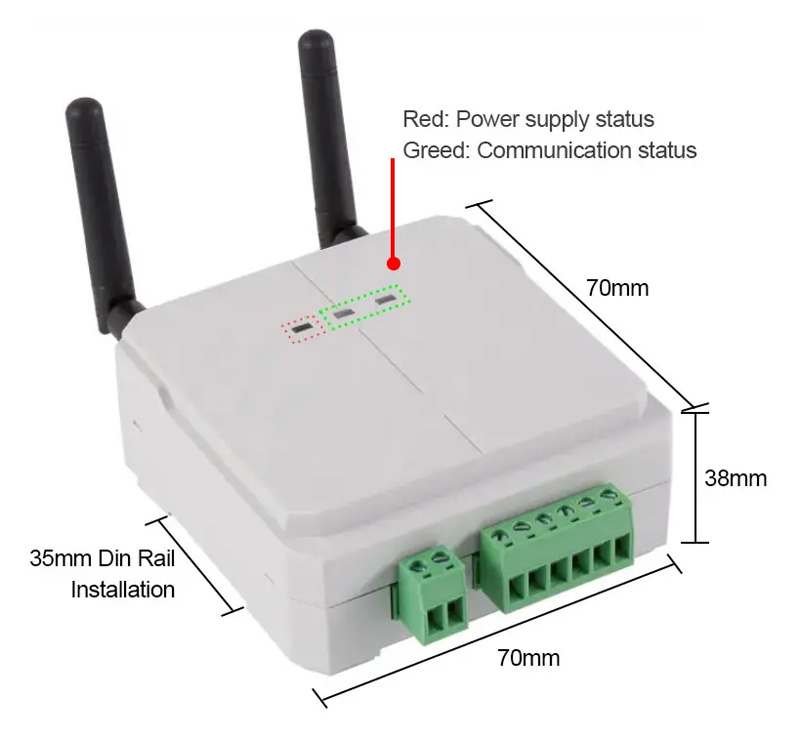

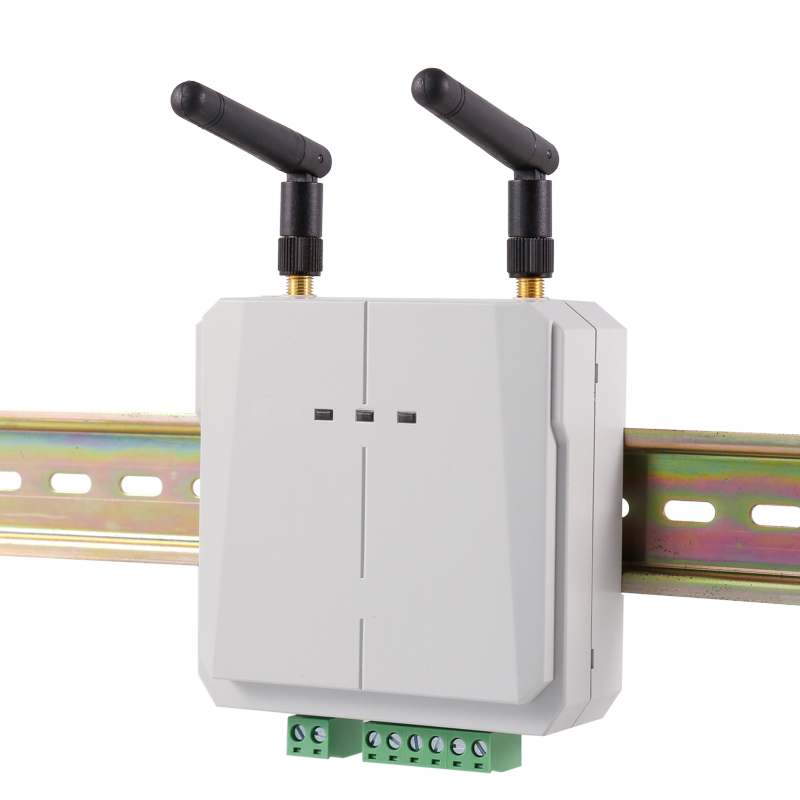

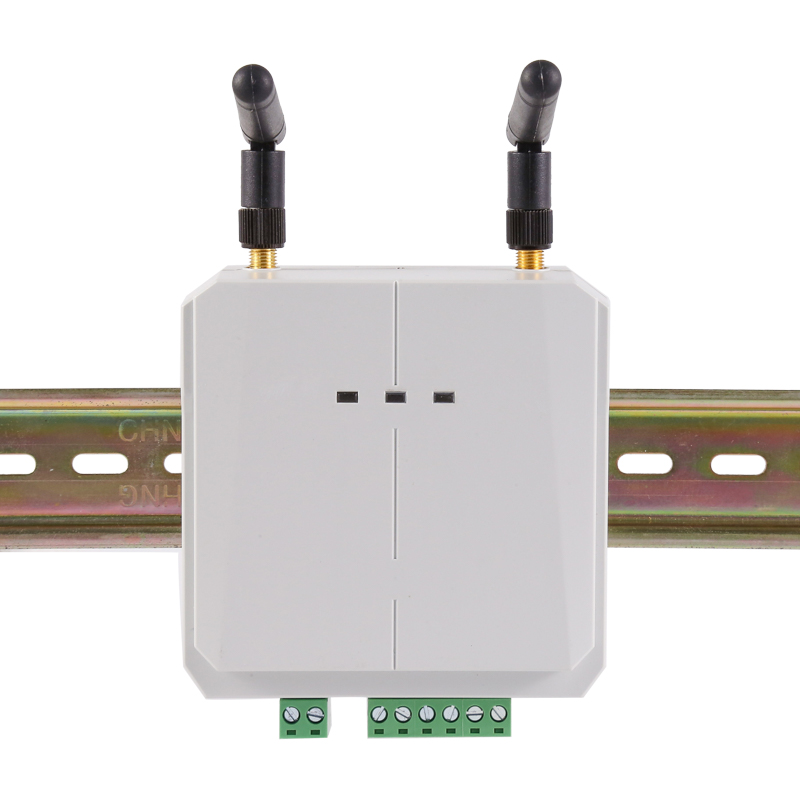

Installation：DIN35mm

[email protected]

Share    

Description

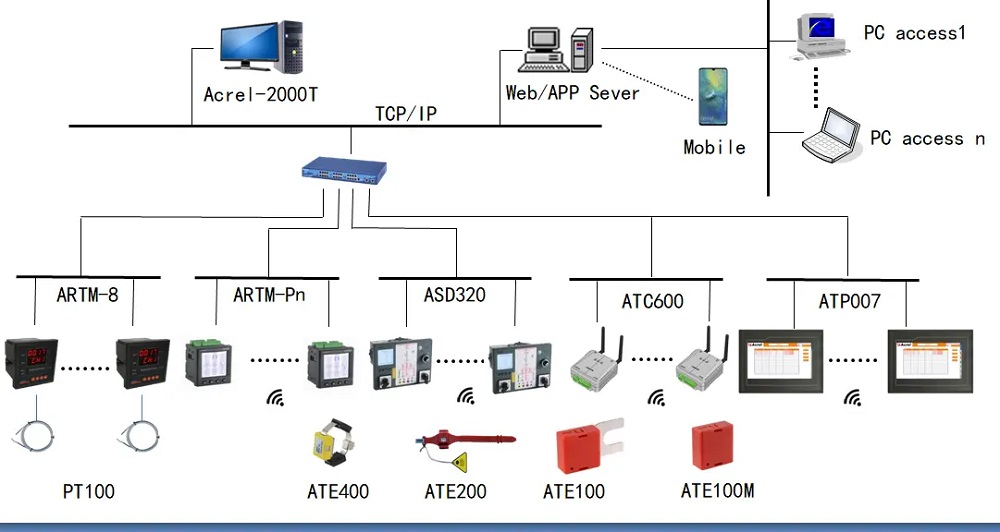

ATC600 wireless transceiver is used with ARTM wireless temperature measurement system. It can be used in 3-35kV indoor switch cabinets, including central cabinets, handcart cabinets, fixed cabinets, ring network cabinets and other switch cabinets, and can also be used in 0.4kV low-voltage cabinets, including fixed cabinets, drawer cabinets, etc., using wireless data transmission technology, the monitoring data can be sent in real time, the temperature can be displayed on the spot, or remote intelligent monitoring can be realized.

Parameters

Items		Features
TransceiverATC600	Power	AC/DC100~265V≤6VA≤8VA
	Power consumption	≤2W
	Points	≤240 points
	Resolution	0.1℃
	Range of temperature	-50℃~+125℃
	Accuracy	±1℃
	Wireless frequency	470M
	Distance	Transceiver sensor 150 m( open), repeaters distance 1 km( open)

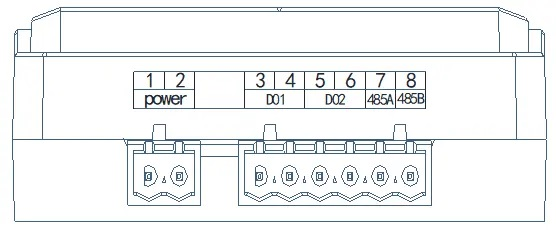

	Communication port	RS485
	Protocol	MODBUS-RTU
	Baud(bps)	2400、4800、9600、19200
	Relay output	2 passive exits ,5 A/AC250V,5A/DC30V capacity
	Working environment	Temperature：-20 ℃～+55 ℃; Humidity≤95%
