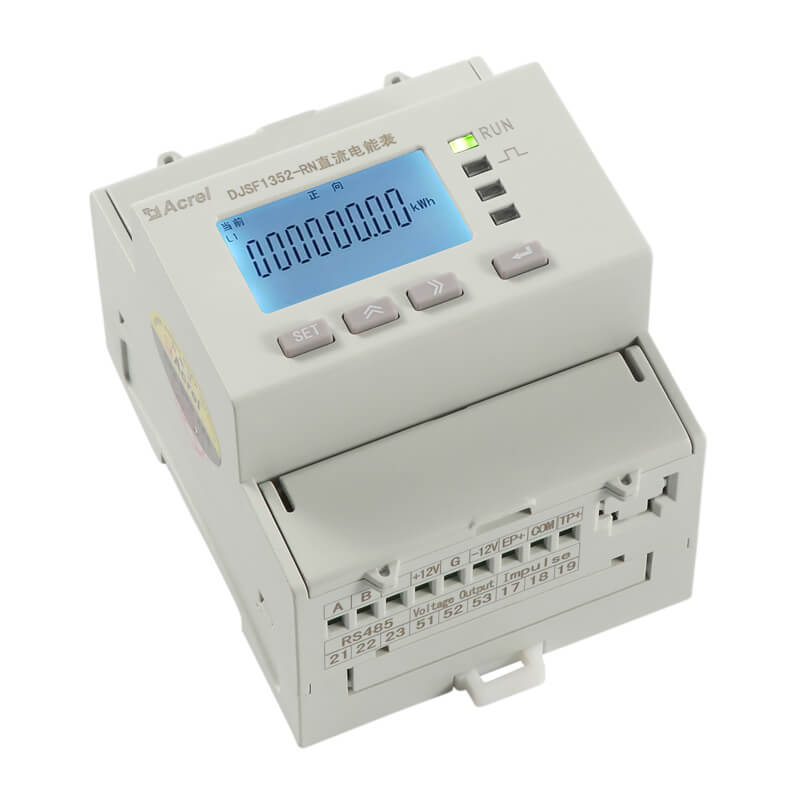

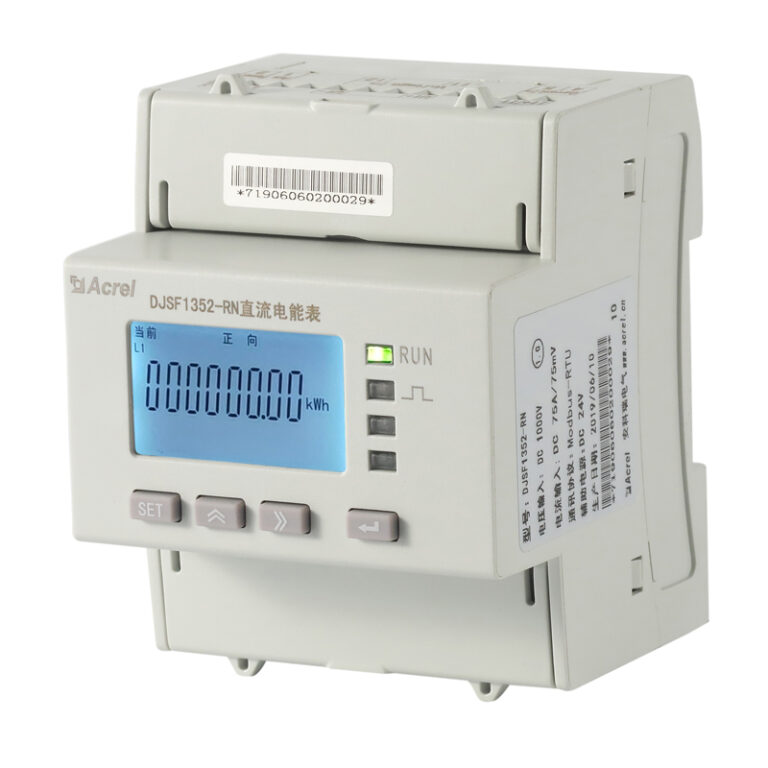

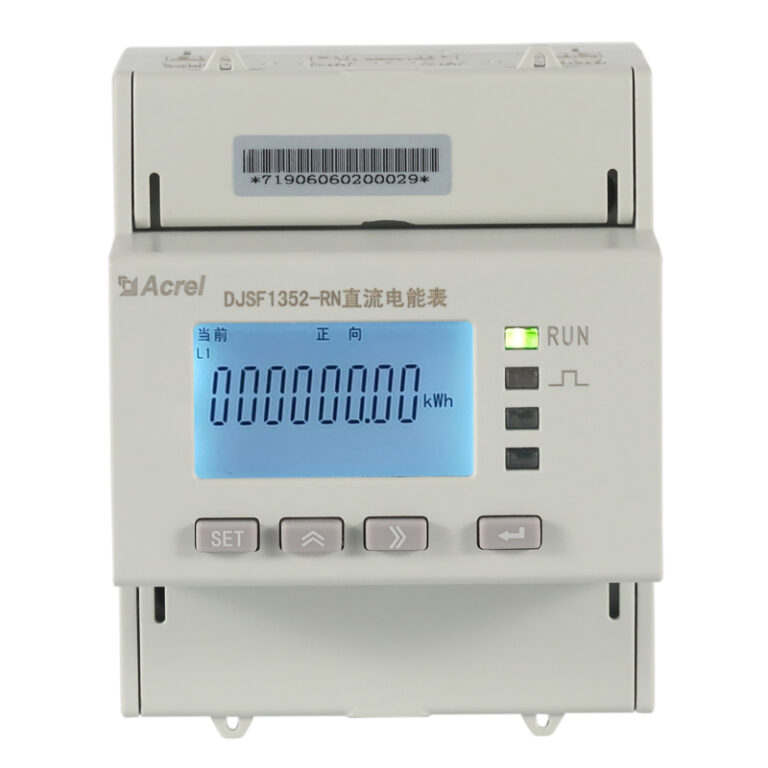

DJSF1352-RN Dual Input DC Energy Meter

RS485 communication interface
Supports Modbus-RTU protocol
Relay alarm output and digital input function

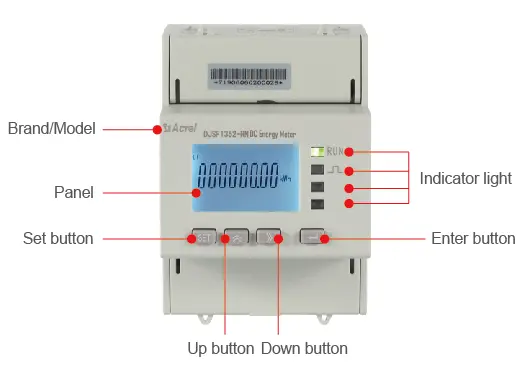

Set the ratio, alarm, and communication through the meter panel keys according to different requirements
Event recording of switch (Modbus protocol), programming and event setting records, instantaneous and timing freeze function of data, maximum and minimum value recording function of voltage and current power

[email protected]

Share    

Description

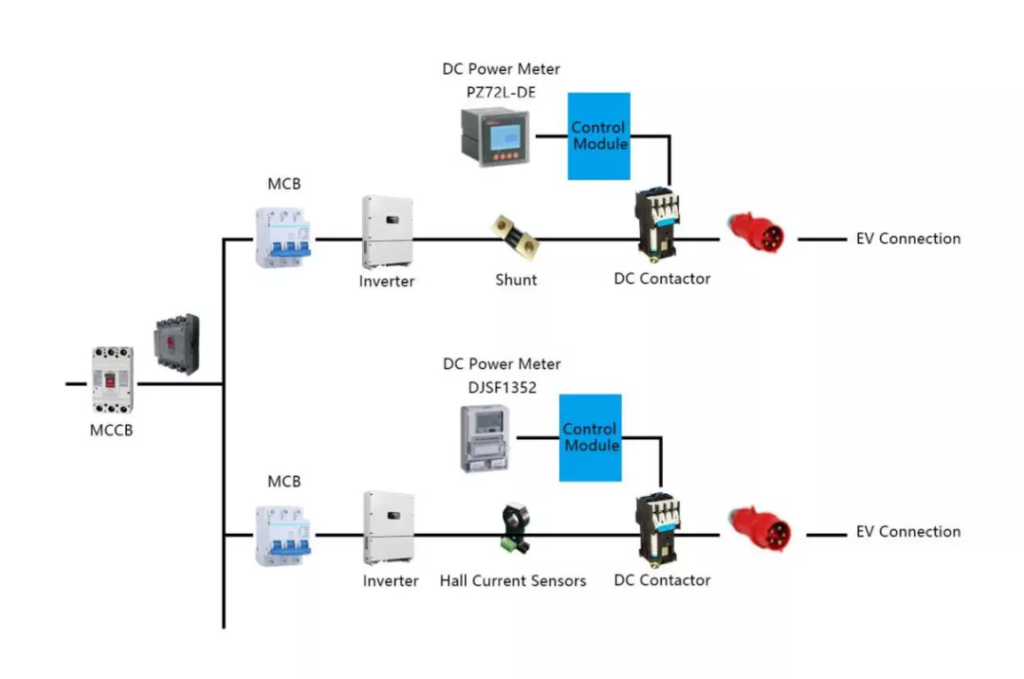

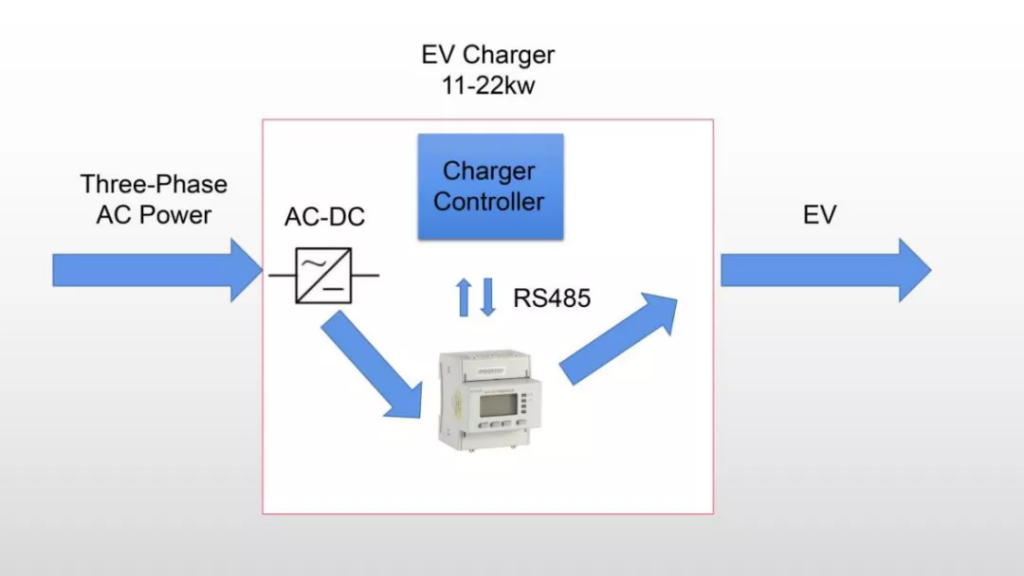

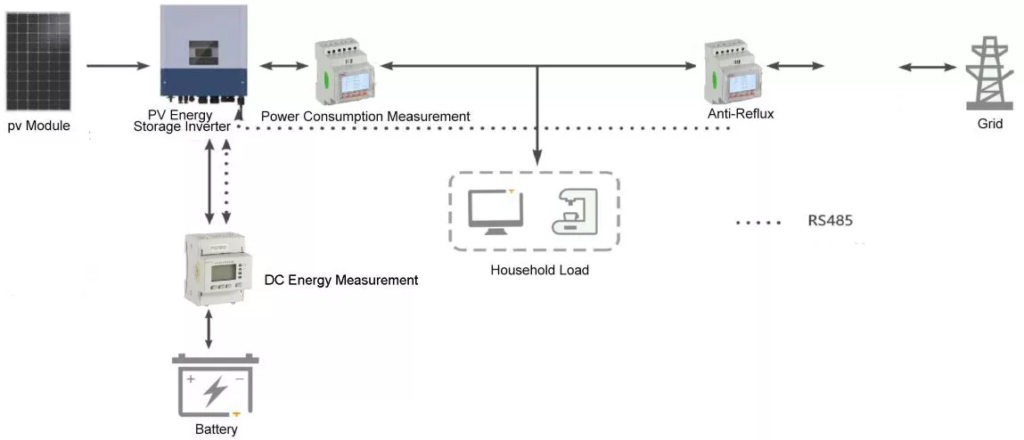

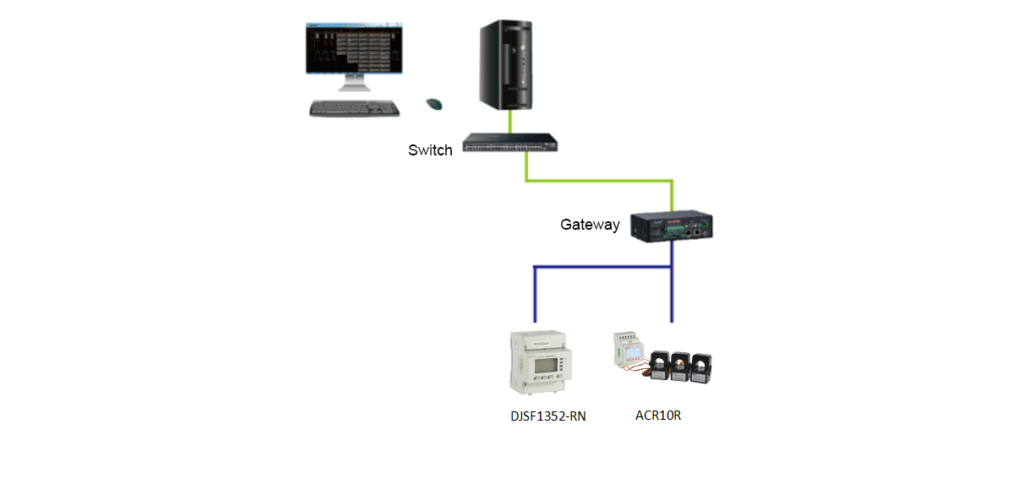

DJSF1352-RN DC energy meter is designed with double DC input channels. It can measure all electrical parameters, total value, and values in different time periods in DC systems. It can be connected to Hall sensor or shunt, the voltage can be 1000VDC. It has RS485(Modbus-RTU) communication and provides power supply for matched hall sensors. The meter has extra optional function as dual DC circuits monitoring, secondary RS485 (Modbus-RTU); DO/DI function. The meter has been used in many base station projects of American Tower, TASC Towers, Helios Towers, IHS Towers, Orange, Vodafone, Edgepoint.

Parameters

Technical parameters		Indicators
Input	Nominal value	Voltage input range	Current input
		DC 0-1000V	Shunt：0-75mV；

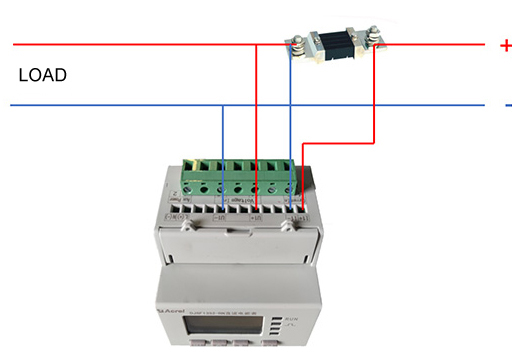

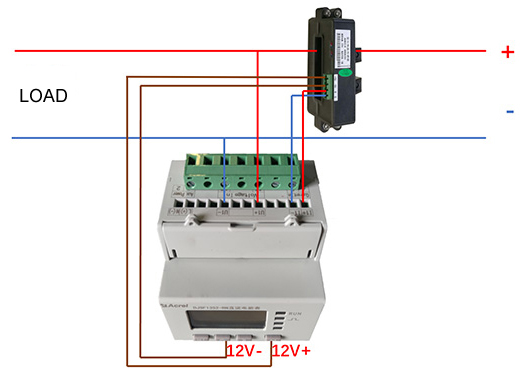

		See the physical wiring diagram	Hall sensor：0-20mA、4-20mA、0-5V，0-10V and so on
	Overload	1.2 times rated (continuous); 2 times rated/1 second;
	Power consumption	Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class		Class 1
Function	Display	8-bit segment LCD screen (LCD)
	Communication Interface	RS485, infraredRS485, infrared
	Communication protocol	Modbus-RTU，DL/T 645-2007
	Switch	Switch output	2 Relay outputs, 2A/30VDC or 2A/250VA
		Switch input	2 dry contact inputs
	Pulse output	A second pulse output, a energy pulse output
		See the SYS->PLUS display in the meter menu setting

		For example: The meter displays 100, which is 100imp/kWH
Power Supply	Voltage range	AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
	Power consumption	≤ 3W
Power frequency withstand voltage		Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1minPower supply // Relay output // Voltage input // Current input 3kV/1minPulse output // Communication interface // Switch input 2kV/1min
Insulation resistance		≥ 40M Ω
Average barrier-free working hours		≥50000h
Environment	Temperature	Normal operating temperature: -25 °C ~ +65 °C;

		Limit working temperature: -40 °C ~ +70 °C;

		Storage temperature: -40℃～+80℃
	Humidity	≤93%RH, no condensation, no corrosive gas
	Altitude	≤2500m
