Application

  • Office Building
  • Commercial Building
  • Tourist Building
  • Scientific,Bducational,Cultural and Healthy Architecture
  • Communication Architecture
  • Transportation Building

Structure

Main Function

Platform Overview

Remote Data Monitoring

Energy Report

Historical record and report

Energy Efficiency Analysis

Web/APP

Product Selection

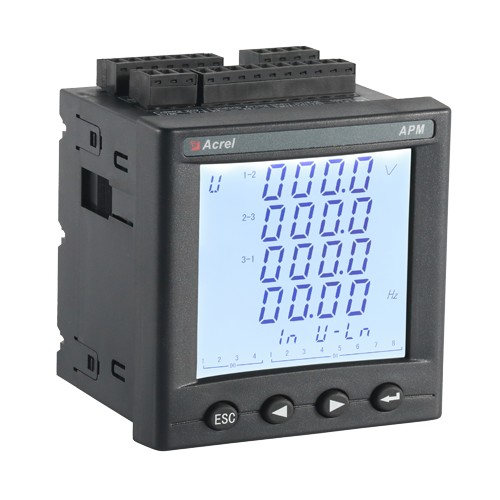

APM810 Multifunction Meter
  • True RMS Measurements
  • THD with 63rd Harmonics
  • K-Factor and Crest Factor
  • Unbalance & Phase Angles
  • Demands and Multi-Tariff energy
  • Max/Min Log with Timestamp

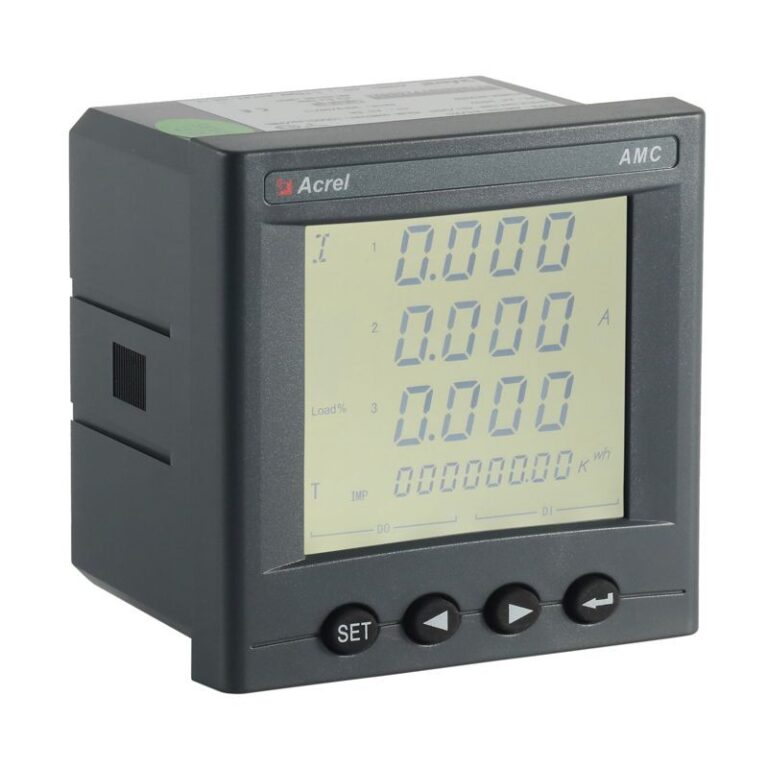

AMC96L-E4/KC Multifunction Meter
  • True RMS Measurements
  • THD with 2-31st Harmonics
  • Max/Min Log with Timestamp
  • Internal Optional 4DI&2DO or 2DI&2DO&2AO
  • Standard one Energy Pulse Output

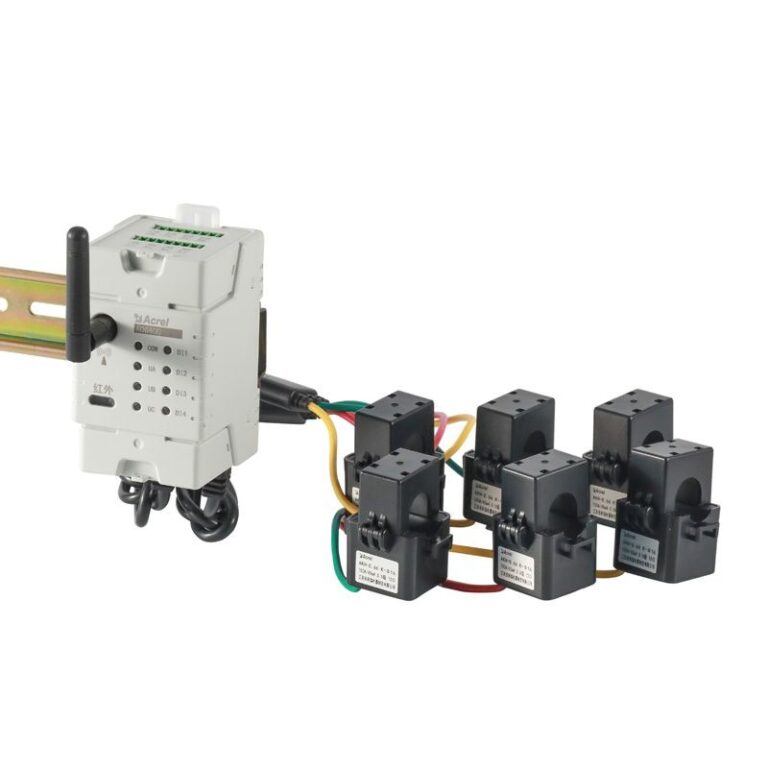

ADW400 Power Cabinet
  • Measurement: Maximum 4 circuits 3 phase U、I、P、Q、S、PF、kWh、kvarh
  • 3×220/380V,3*380V, 3*57.7/100V,3*100V
  • 3×1(6)A,3×20(100)A, 3×80(400)A,3×120(600)A
  • RS485 or LoRa

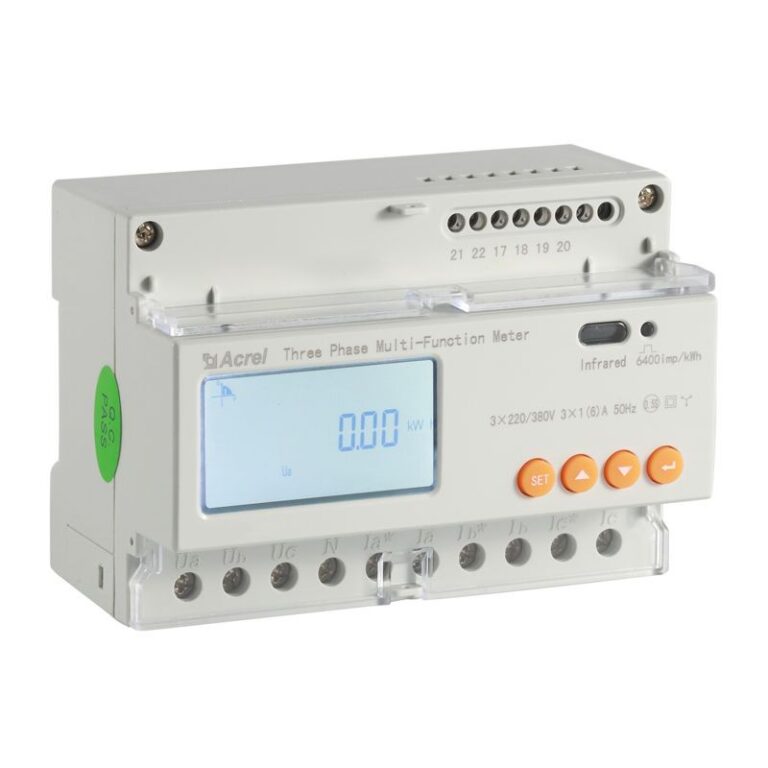

ADL3000-E Three Phase Multi-function Energy Meter
  • AC 3×220/380V，3×380V，3×57.7/100V，3×100V
  • 3×1（6）A，3×10（80）A
  • U、I、P、Q、S、PF、kWh、kvarh
  • RS485(MODBUS-RTU)
  • 2-31st  Harmonics, Frozen data
  • kWh Class 0.5S,kVarh Class 2

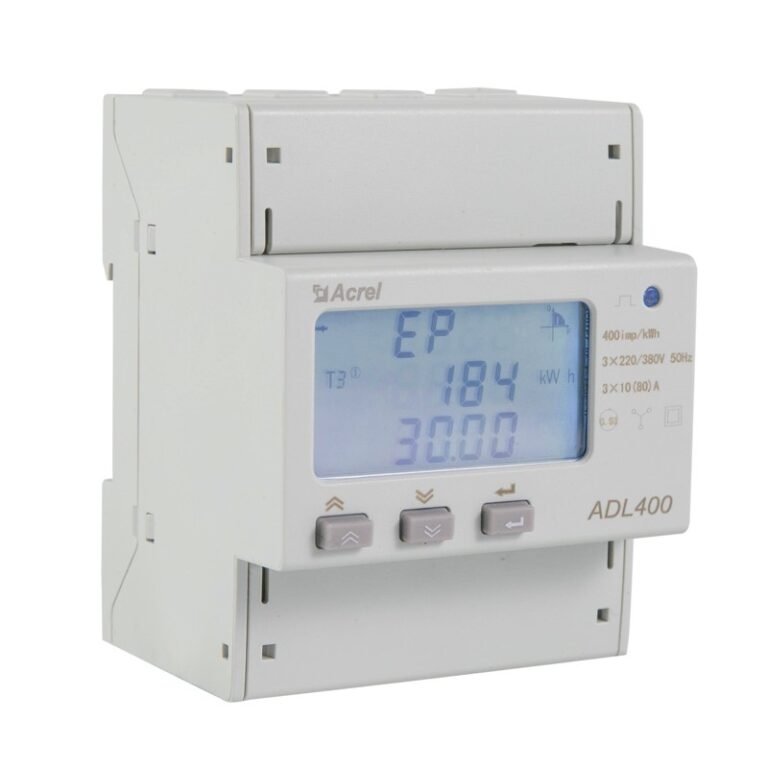

ADL400 Din Rail Energy Meter
  • AC220V
  • 3×1(6)A,3×10(80)A
  • RS485(MODBUS-RTU)
  • Set parameters
  • LCD display
  • kWh Class 0.5

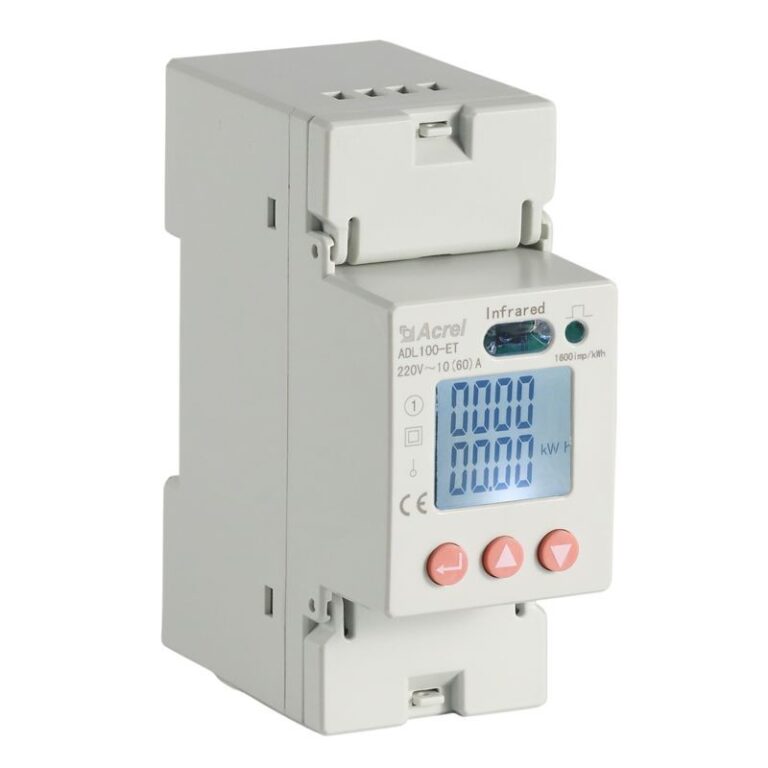

ADL100-ET Single Phase Multi-function Energy Meter
  • AC220V
  • 10（60）A，20（100）A
  • RS485(MODBUS-RTU)
  • Set parameters
  • LCD display
  • kWh Class 1

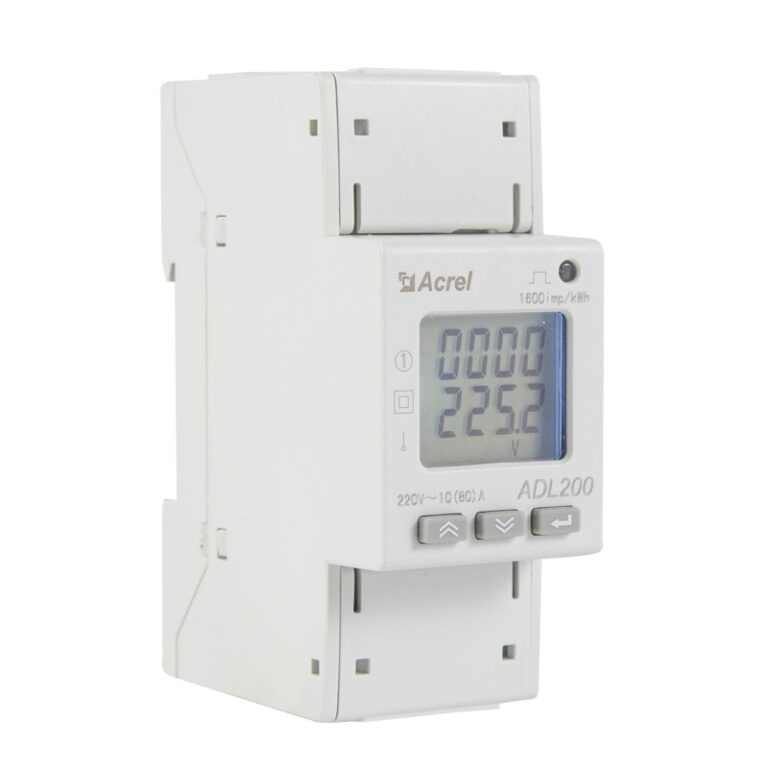

ADL200 Din Rail Energy Meter
  • AC220V
  • 3×10(80)A
  • RS485(MODBUS-RTU)
  • Set parameters
  • LCD display
  • kWh Class 1

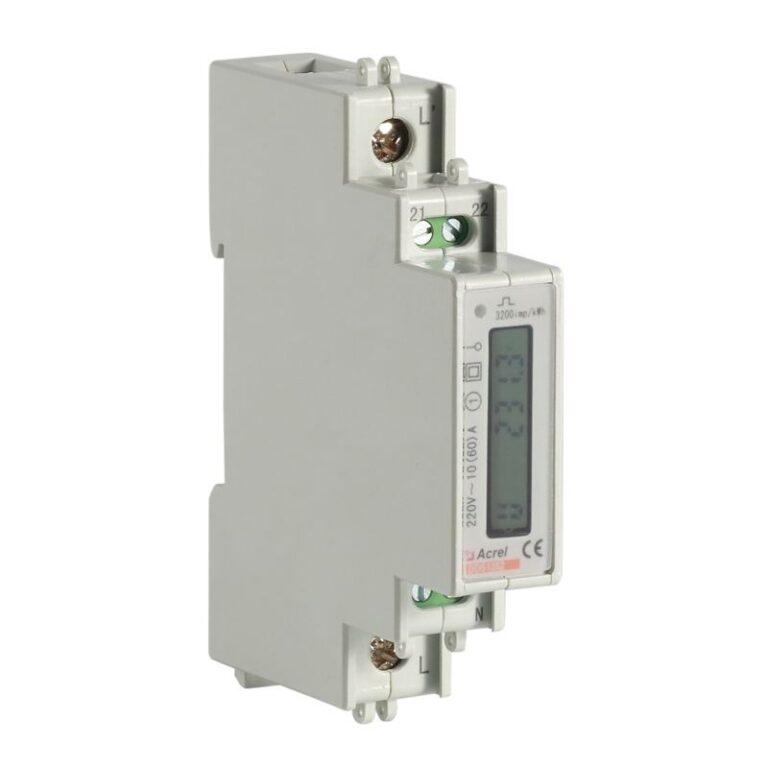

ADL10-E Single Phase Electric Energy Meter
  • AC 220V
  • 10（60）A
  • RS485，MODBUS-RTU
  • LCD display
  • kWh Class 1，Kvarh Class 2
  • U、I、P、Q、S、PF、kWh、kvarh

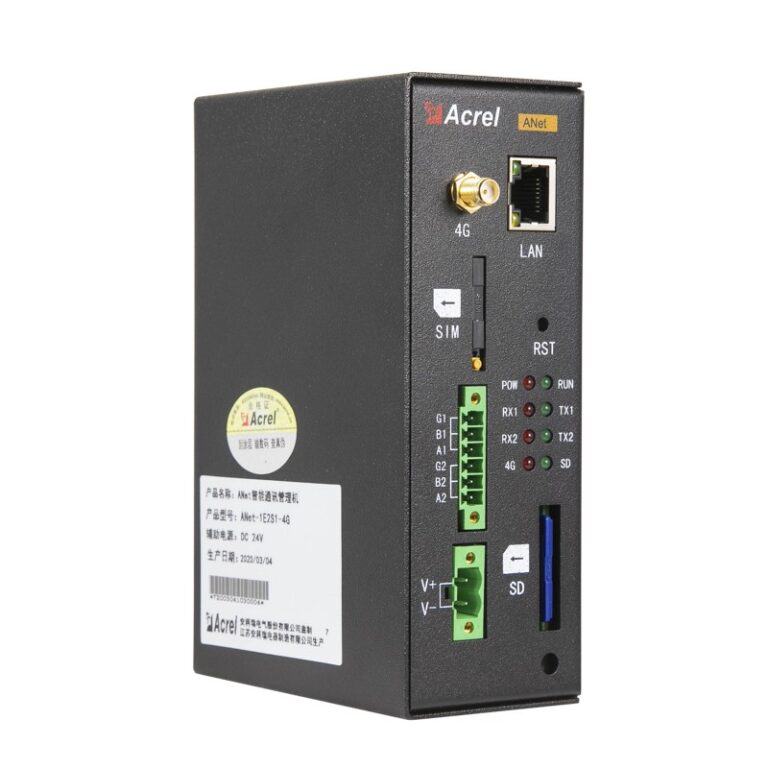

Anet-1E2S-4G Gateway
  • Downlink:2* RS485
  • Uplink:4G
