Application

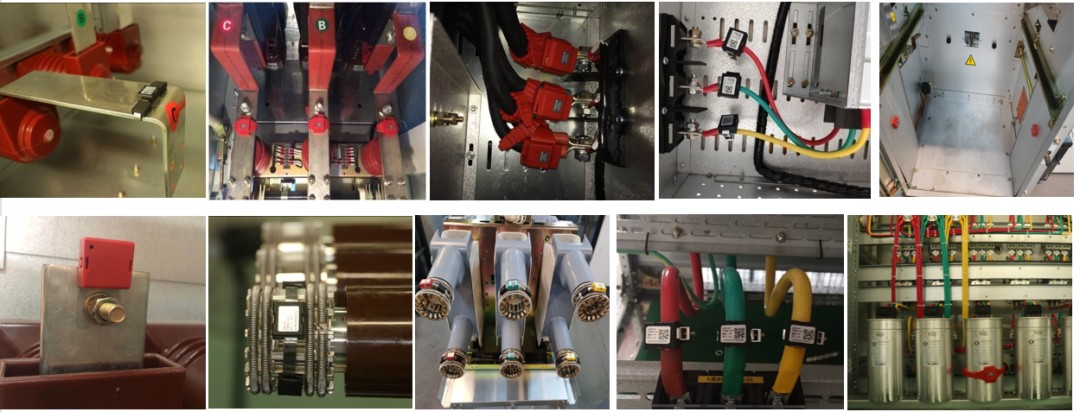

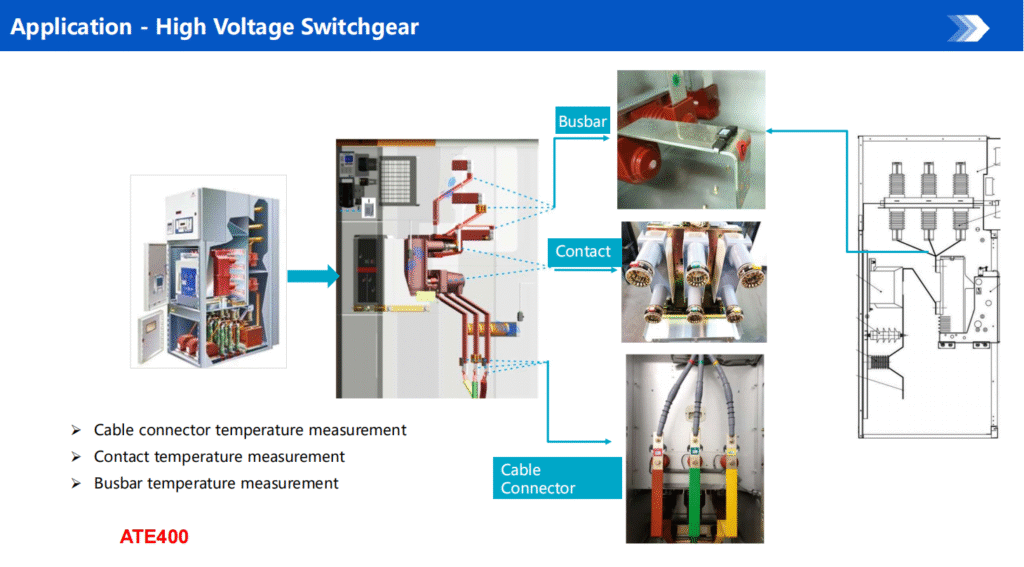

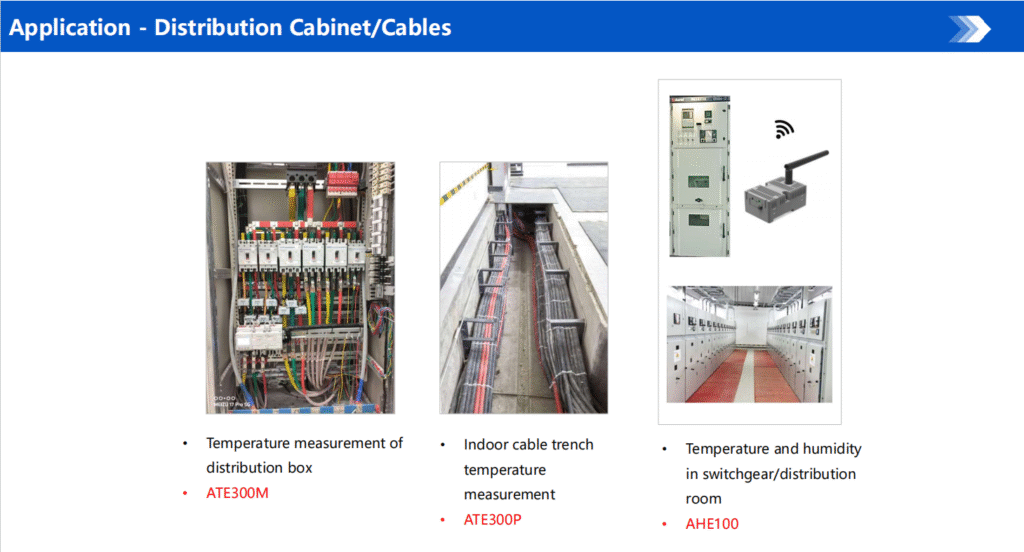

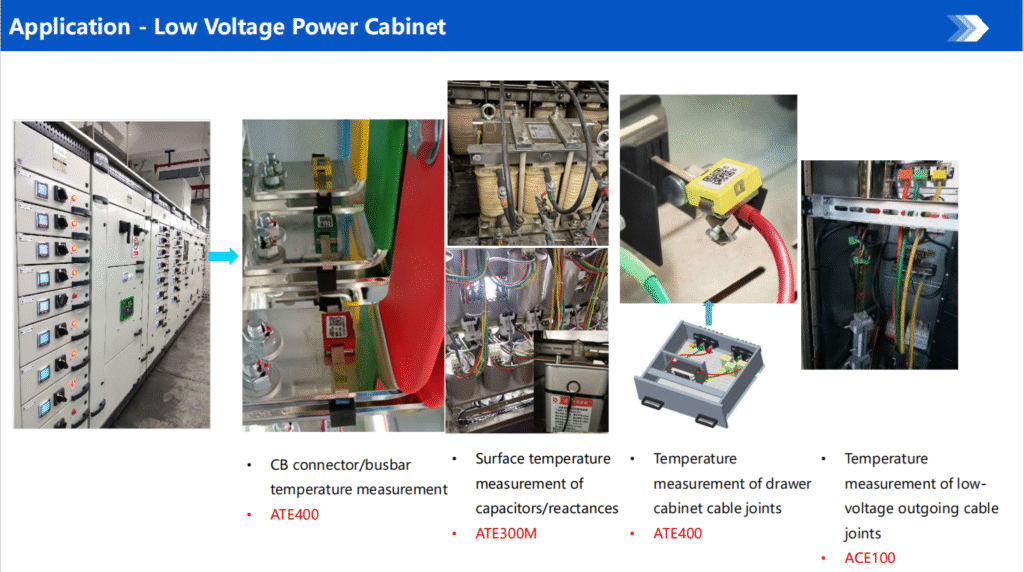

The electrical contact online temperature measuring device is suitable for cable joints, circuit breaker contacts, knife switches, high-voltage cable intermediate heads, high-voltage and low-voltage switch cabinets, etc.

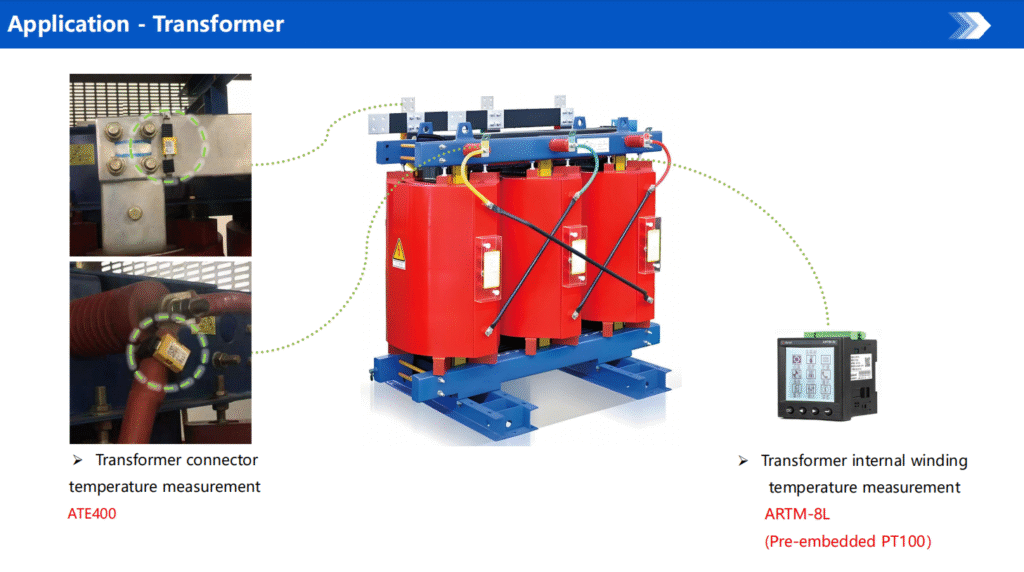

Temperature monitoring of dry-type transformers, low-voltage high-current equipment, etc., to prevent contact contact caused by oxidation, looseness, dust and other factors during operation, Excessive resistance and heating become a safety hazard, improve equipment safety, timely, continuous and accurate reflection of equipment operating status, and reduce equipment accidents Rate.

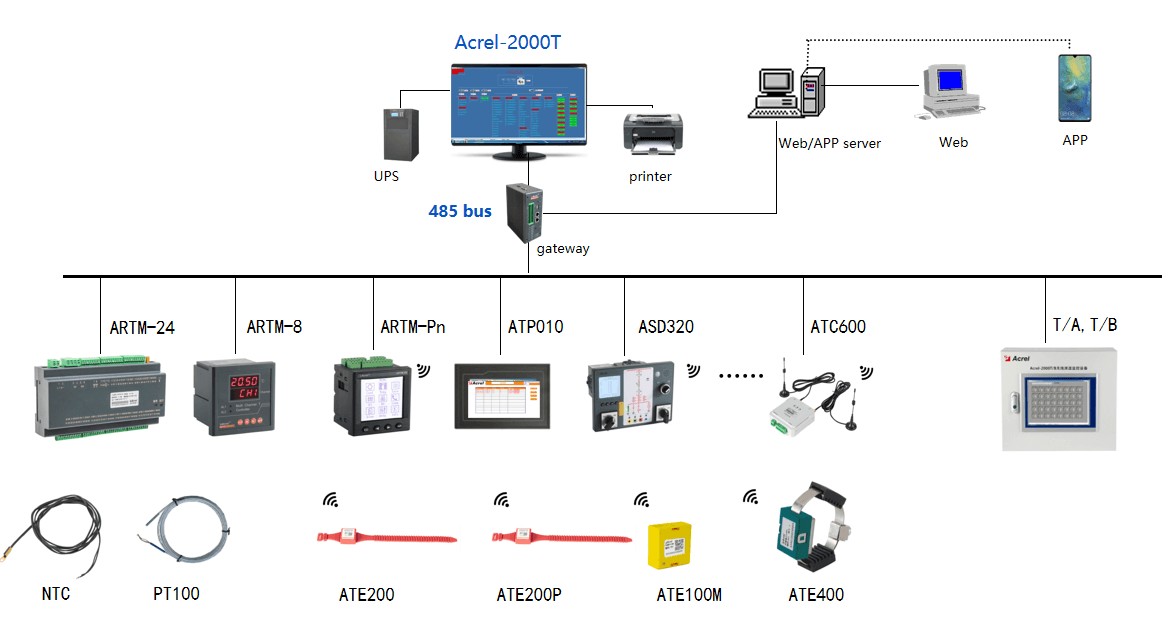

Structure

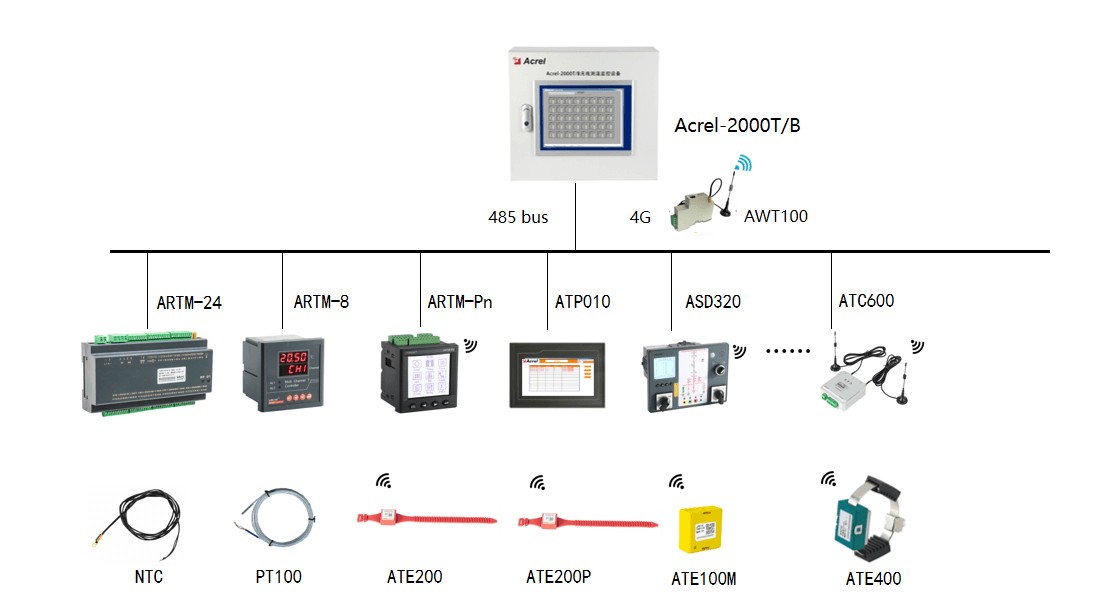

Solution

Product Selection

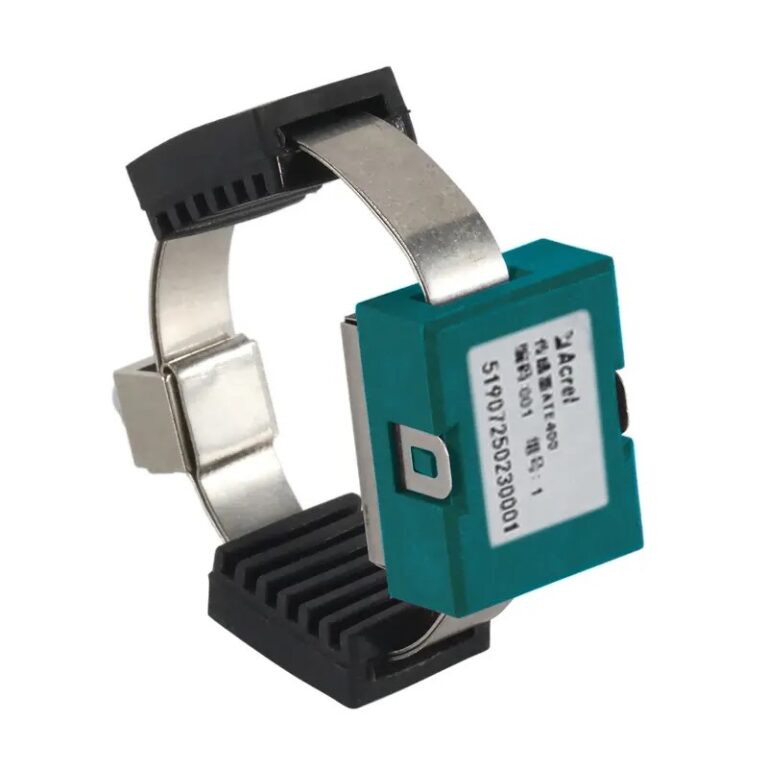

ATE400 Wireless Temperature Sensor
  • Wireless transmission distance, 50 meters;
  • Fase sampling frequency,15s;
  • CT-powered, more than 5A starting current;
  • Widely temperature measuring range, -40℃~125℃.

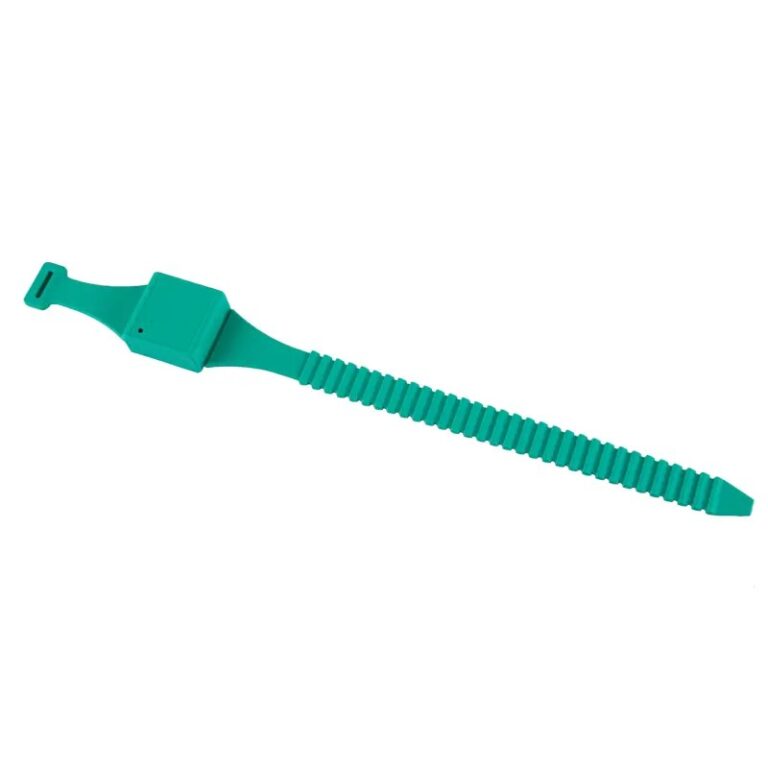

ATE200 Wireless Temperature Sensor
  • Wireless transmission distance, 50 meters;
  • Fase sampling frequency,25s;
  • Battery -powered,5 years(25℃);
  • Widely temperature measuring range,-40℃~125℃

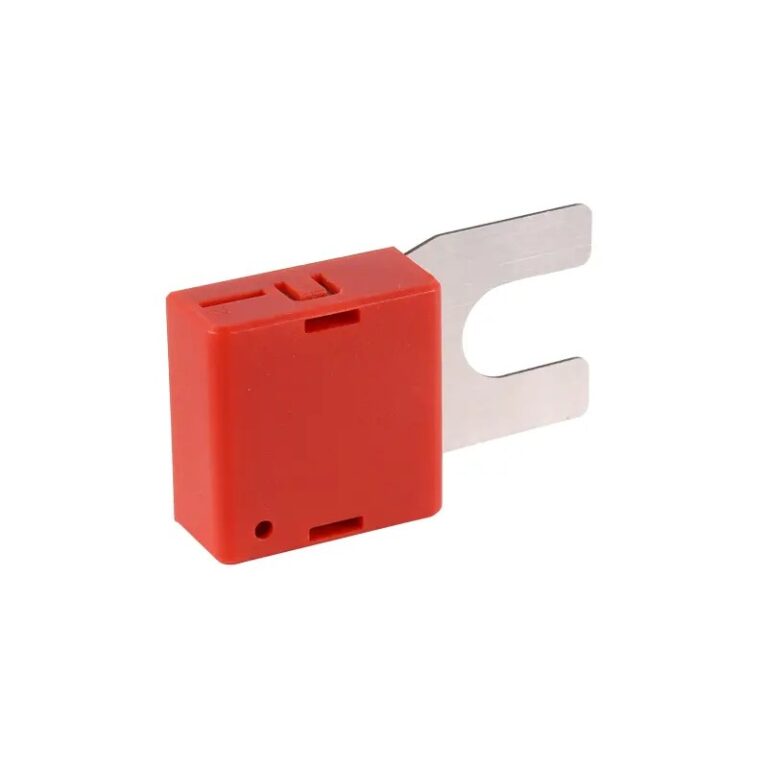

ATE100 Wireless Temperature Sensor
  • Wireless transmission distance, 50 meters;
  • Fase sampling frequency,25s;
  • Battery -powered,5 years(25℃);
  • Widely temperature measuring range,-40℃~125℃

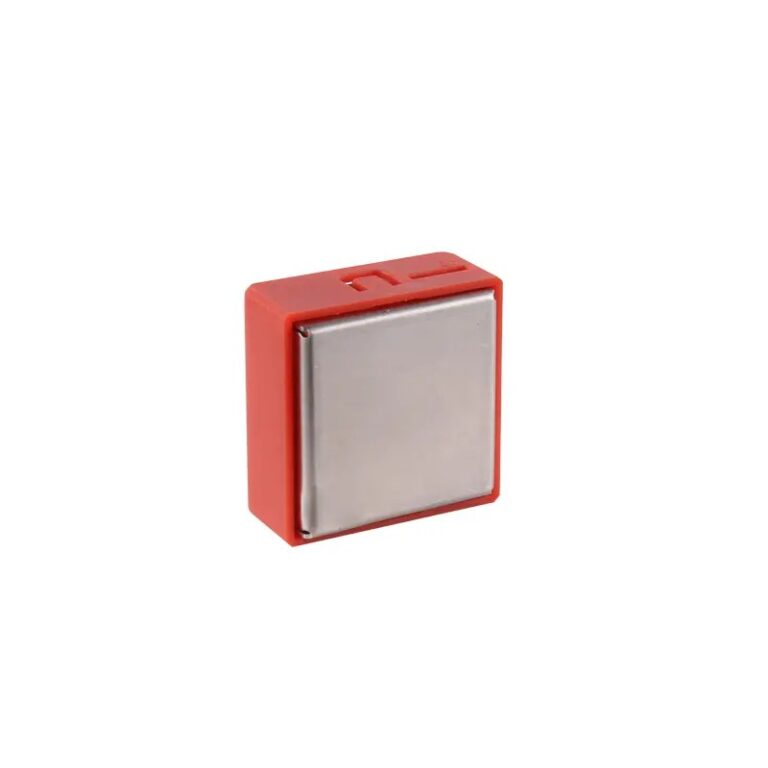

ATE100M Wireless Temperature Sensor
  • Wireless transmission distance, 50 meters;
  • Fase sampling frequency,25s;
  • Battery -powered,5 years(25℃);
  • Widely temperature measuring range,-40℃~125℃

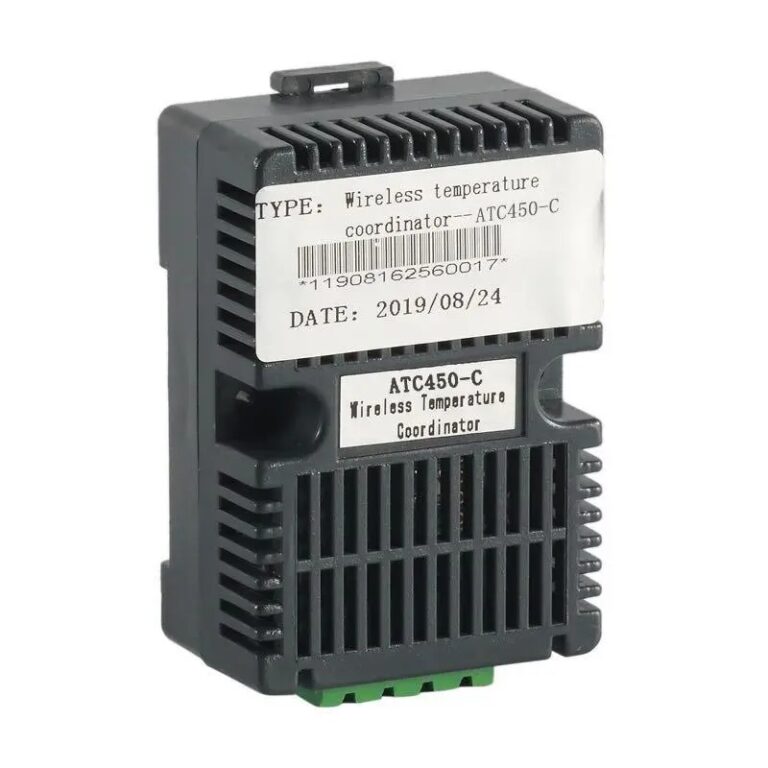

ATC450-C
  • Wireless temperature measurement;
  • Measuring 60 points;
  • 1 RS485 Modbus-RTU;
  • Power supply adapt with DC24V.

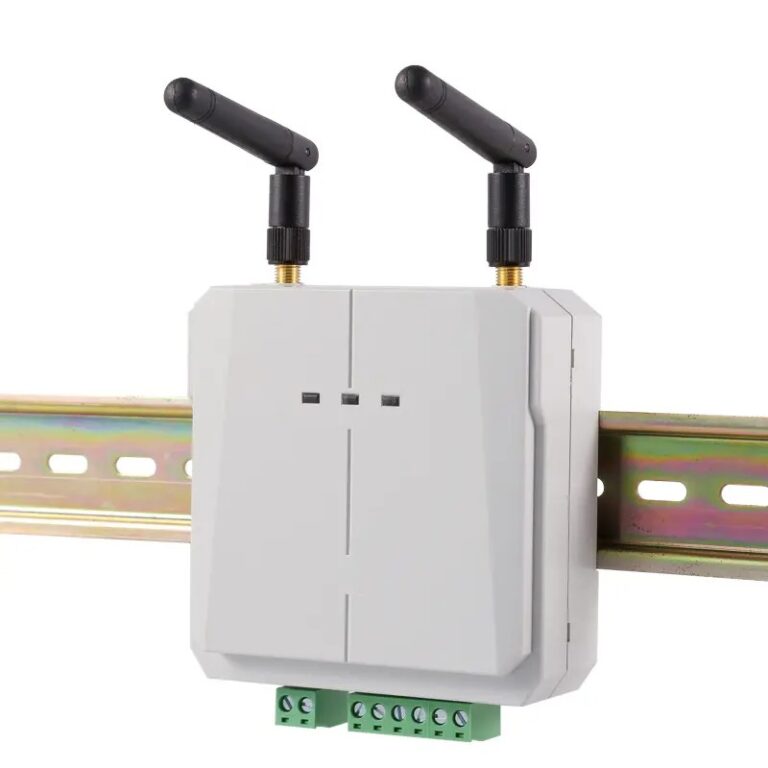

ATC600-C
  • Wireless temperature measurement;
  • Measuring 240 points;
  • 1 RS485 Modbus-RTU;
  • 2 alarm relays
  • Power supply adapt with AC/DC220V,AC/DC110V,DC12~48V.

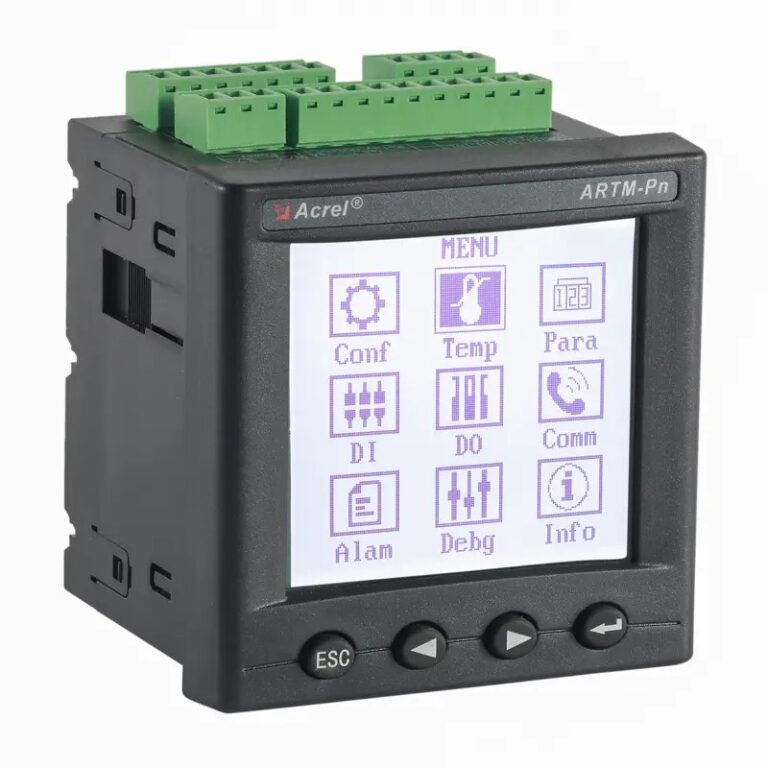

ARTM-Pn Wireless Temperature Measuring Equipment
  • Wireless temperature measurement, 60 points;
  • 4 digital inputs;
  • 2 alarm relays;
  • Power supply adapts with AC220V, DC220V, DC110V, AC110V;
  • 1 RS485 Modbus-RTU.

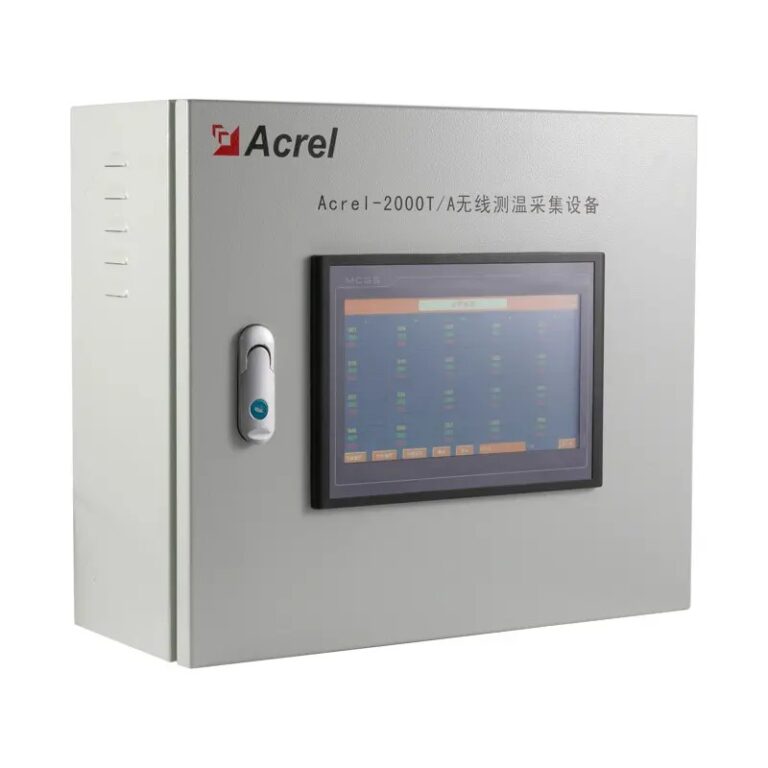

Acrel-2000T/A
  • Wireless temperature measurement, 240 points;
  • Power supply adapt with AC220V, DC220V, DC110V, AC110V;
  • Temperature Curve;
  • High temperature alarm, buzzer;
  • 1 RS485 Modbus-RTU, 1 Ethernet communication
